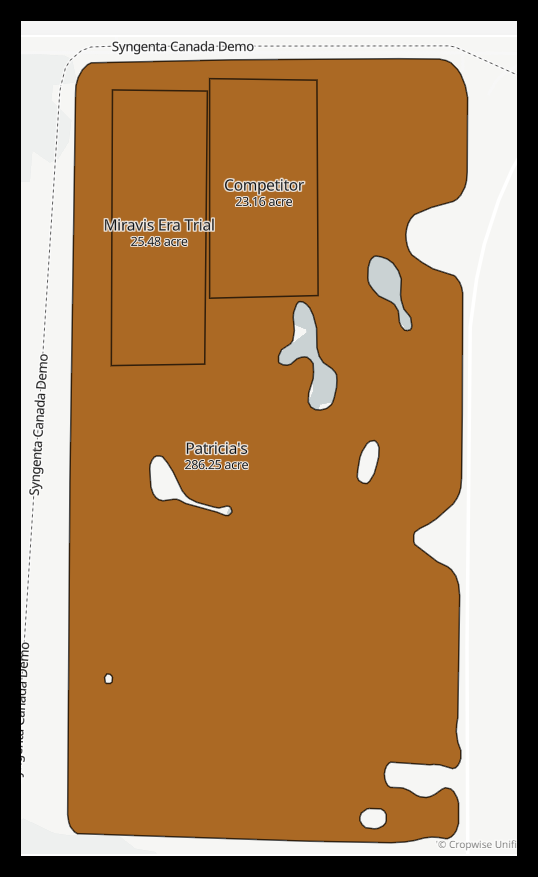

Plots can be used to separate out certain areas of the field, temporarily. Plots are used to highlight different treatments on a single field. They can be drawn on the web or the mobile.
Please see Mobile Plot Creation to see how this is done on the mobile.
To add a new plot to an existing field, select the field you want to add the plot to and bring up the Field Dashboard.

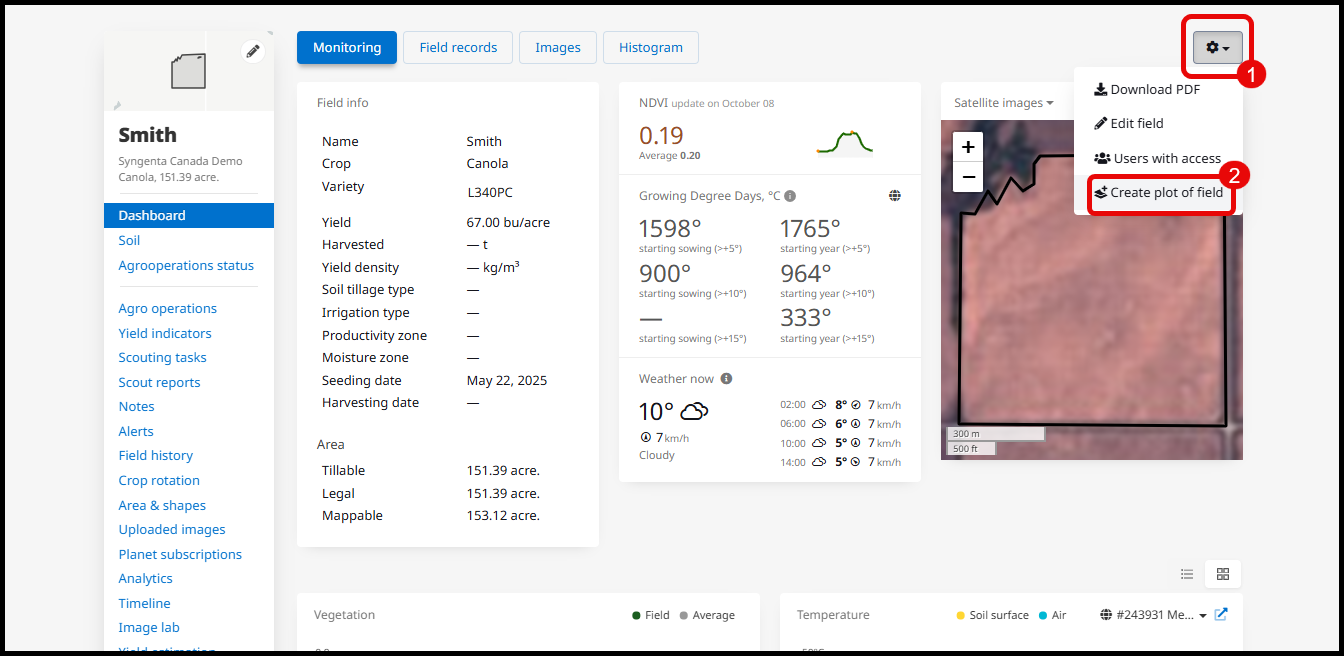

Select the gear then Create plot of field.

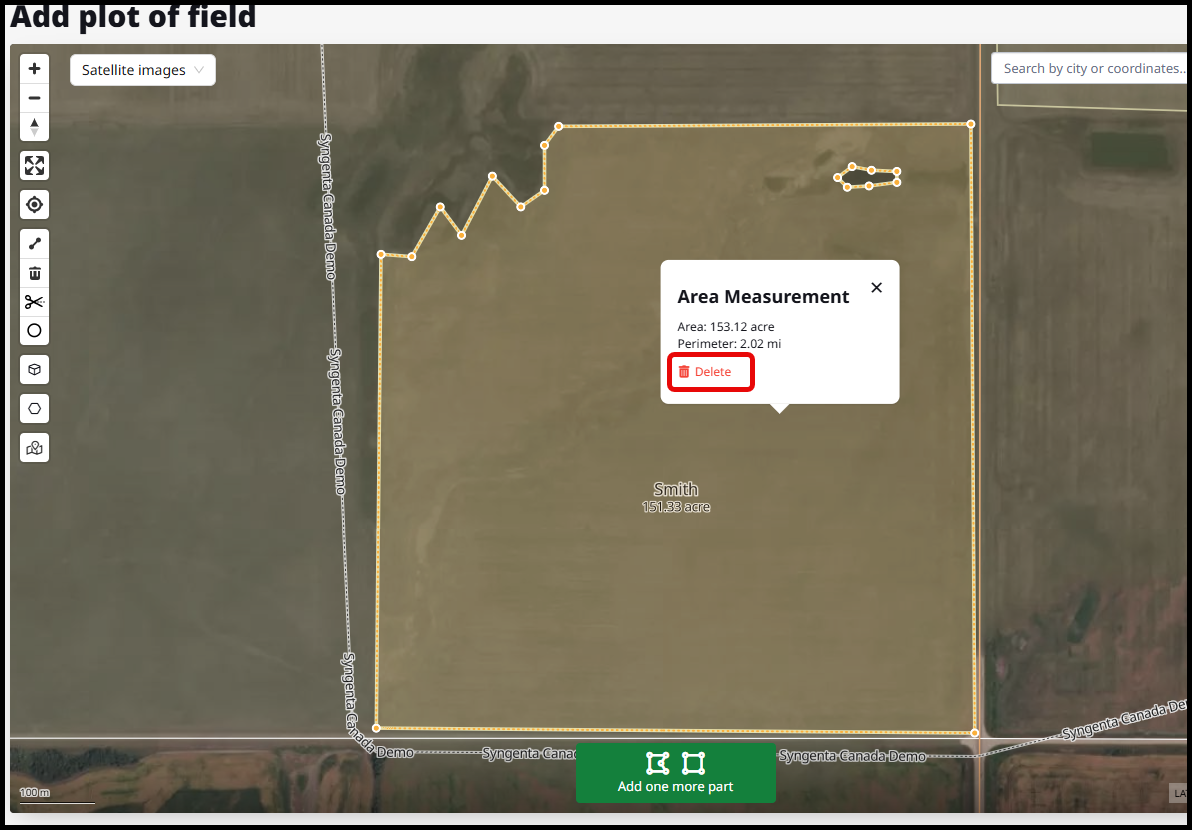

Click on the blue shape of the field, then select Delete.
Now you can select Draw a contour to draw the area of the treatment.

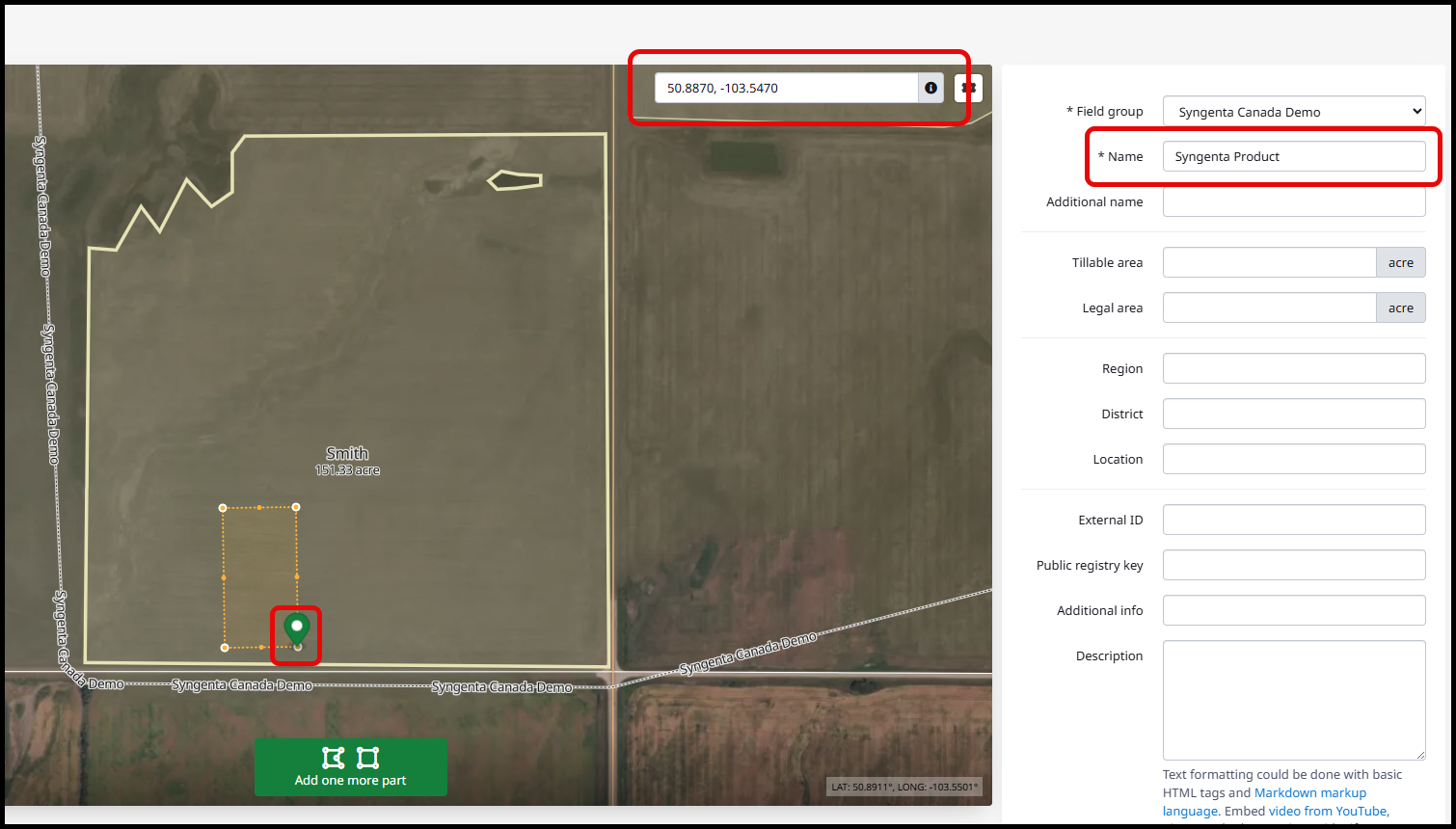

Note: If you have a GPS location of the flags or divide lines in the field, you can increase the accuracy of your plots by leaving a pin on the map to draw the plot from. Enter your latitude and longitude in the top right corner of the map and hit enter to bring up that exact location on the field.
Ensure the Field group is correct and Name your plot. Scroll down on the right and select Create plot of field to complete.
