To analyze a field's plant health using Cropwise Imagery, the field boundaries must first be added to the system. This article will explain the processes available within Cropwise Imagery to create new farms and fields.
How can I add Farms and Fields into Cropwise Imagery?
• Creating a New Farm
• Creating New Fields
• Import Files
• Draw or Detect Fields
Creating a New Farm

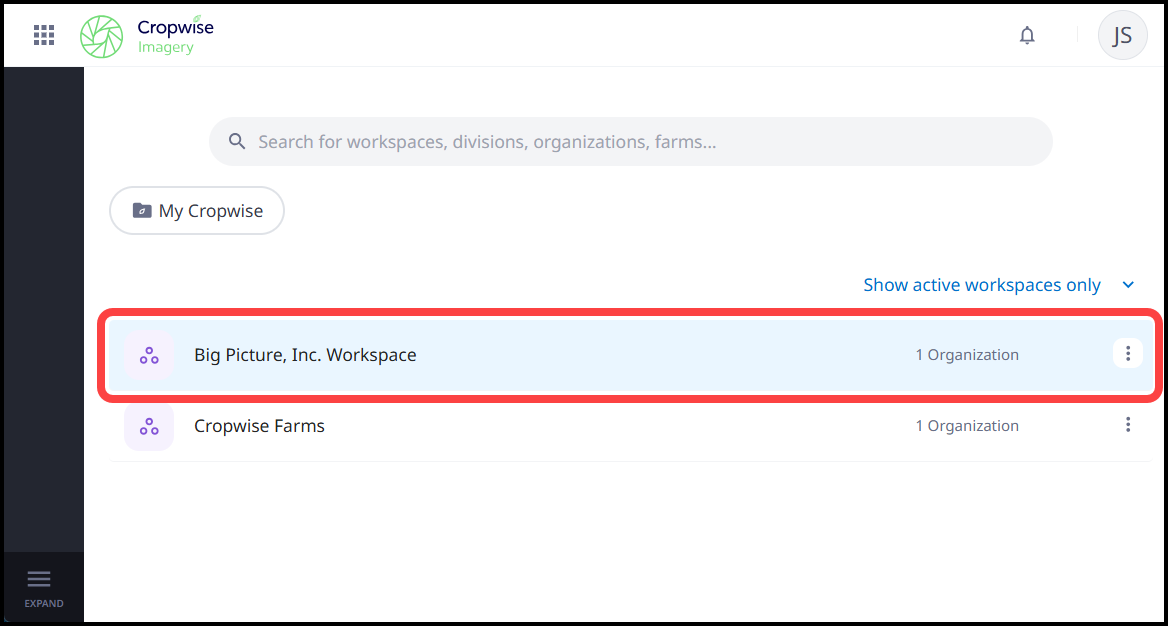

To create a new farm, begin by logging into Cropwise Imagery. If you have access to more than one Cropwise Workspace or Organization, choose the appropriate Workspace and/or Organization in My Cropwise to show the desired Organization.
Once the Organization's Farm List is displayed, select + New Farm.

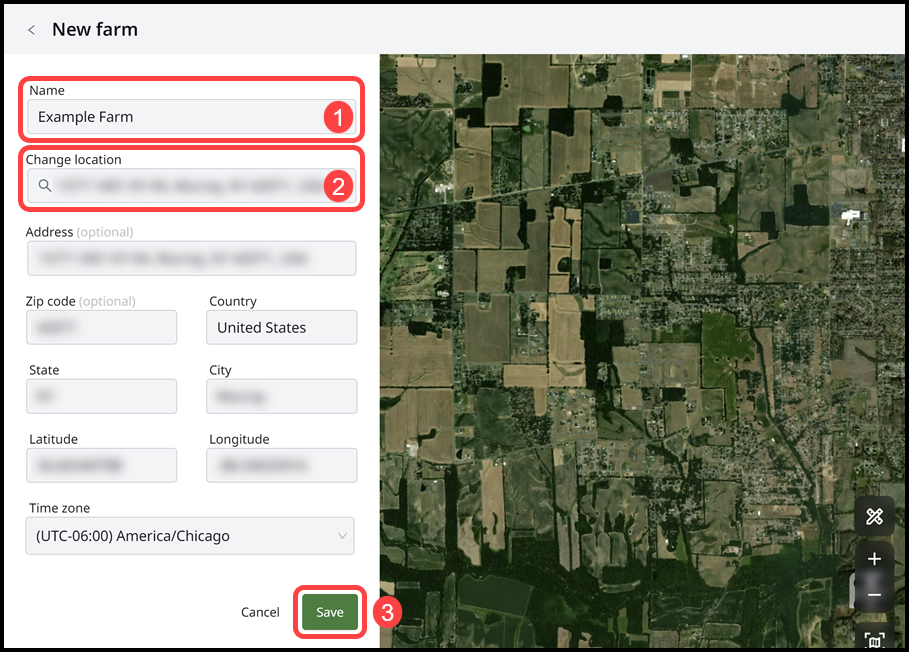

1) Name the farm and 2) identify the location, through searching for the location or selecting the location within the map window. 3) Select Save.
Creating New Fields

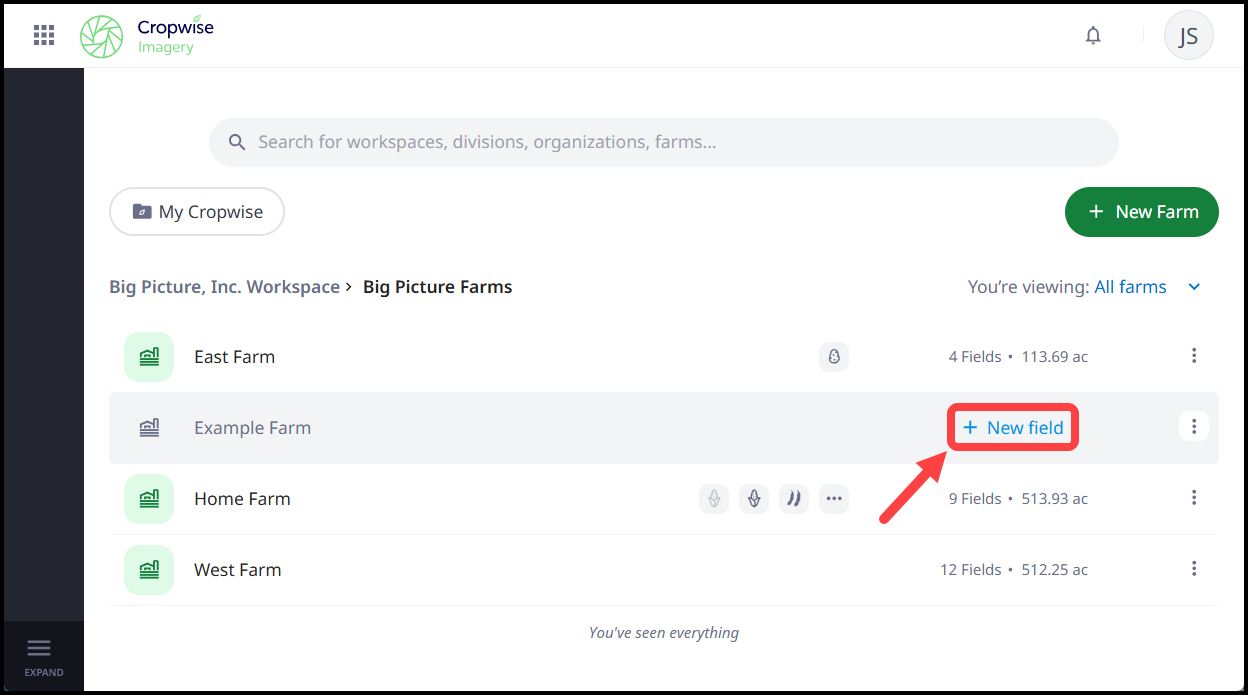

After creating the new farm, select + New field.

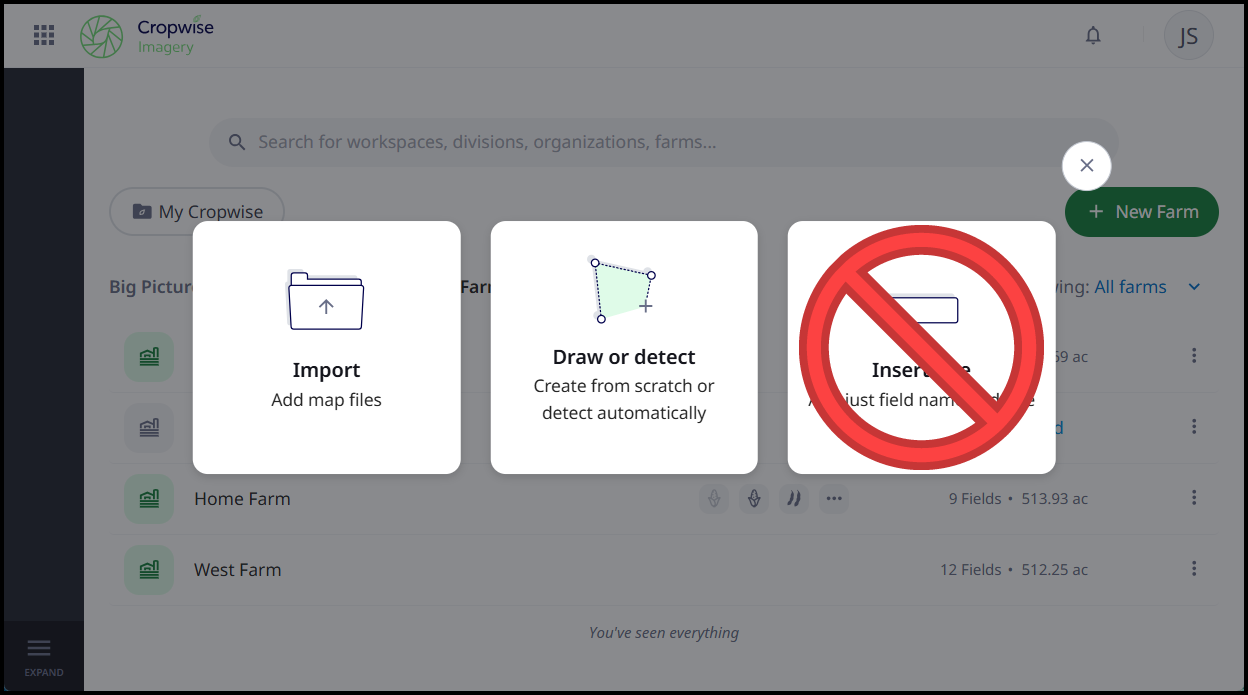

A field can be created within Cropwise Imagery in two different ways. The processes to add fields include Import and Draw or detect options. The option to Insert Size should be avoided.
Import Files
Follow this process to upload field shapefiles to the new farm. Please note that importing a Farm-Field Tree (FFT) only works on a per farm basis. Please repeat this import process for each necessary farm.

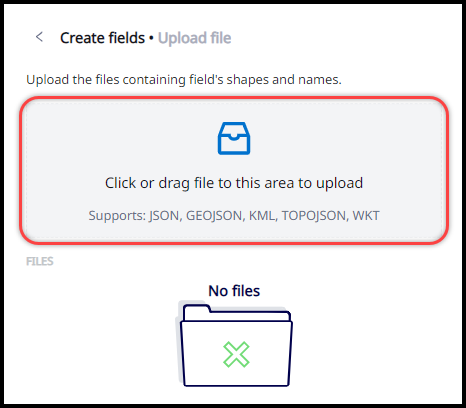

Select within the Click or drag file to this area to upload button.

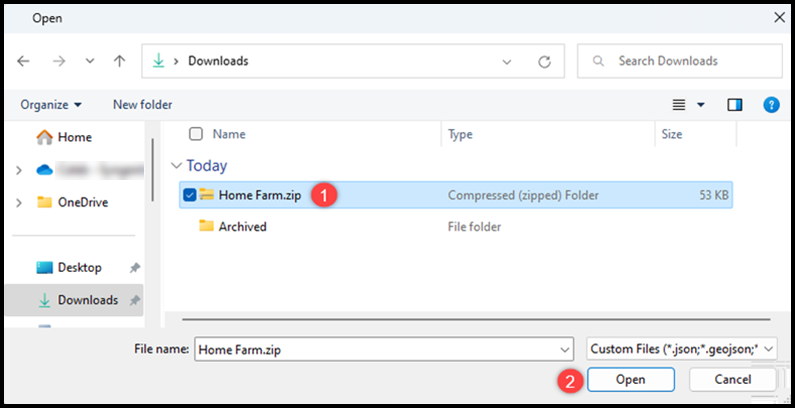

Search for and select the desired shapefiles and then select Open.
Note: Shapefiles have individual .shp, .shx and .dbf files that need to be within the same zipped folder together.

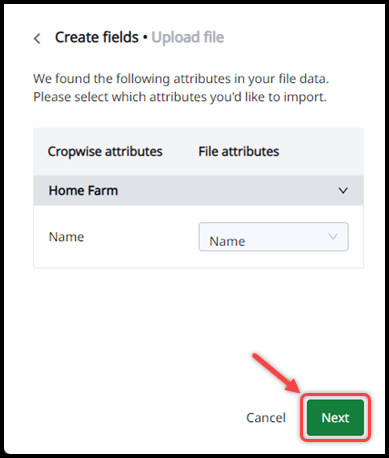

The File Attributes menu provides the ability to set the field name for boundaries that are being imported. The desired choice will be an attribute that contains anything similar to Name or Field Name. After selecting the appropriate file attribute select Next to continue in the process.

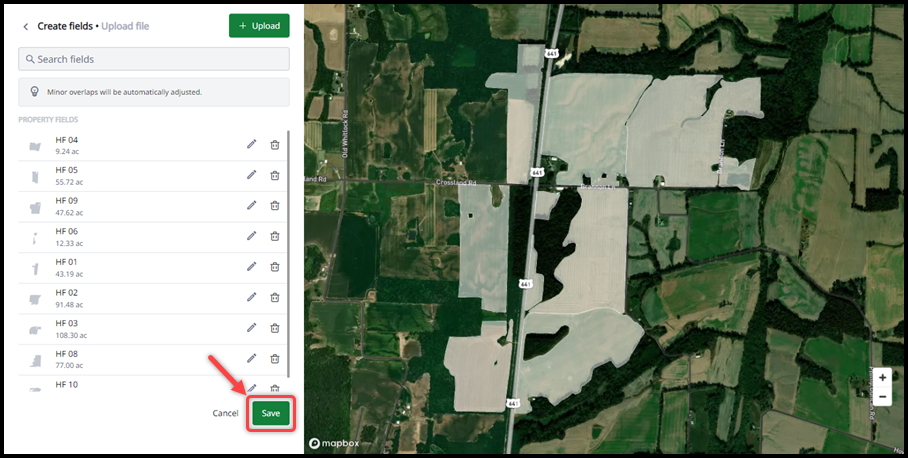

The fields will now display within the map and are available for any necessary edits. Complete the upload process by selecting Save.
Draw or Detect Fields
Drawing Tools

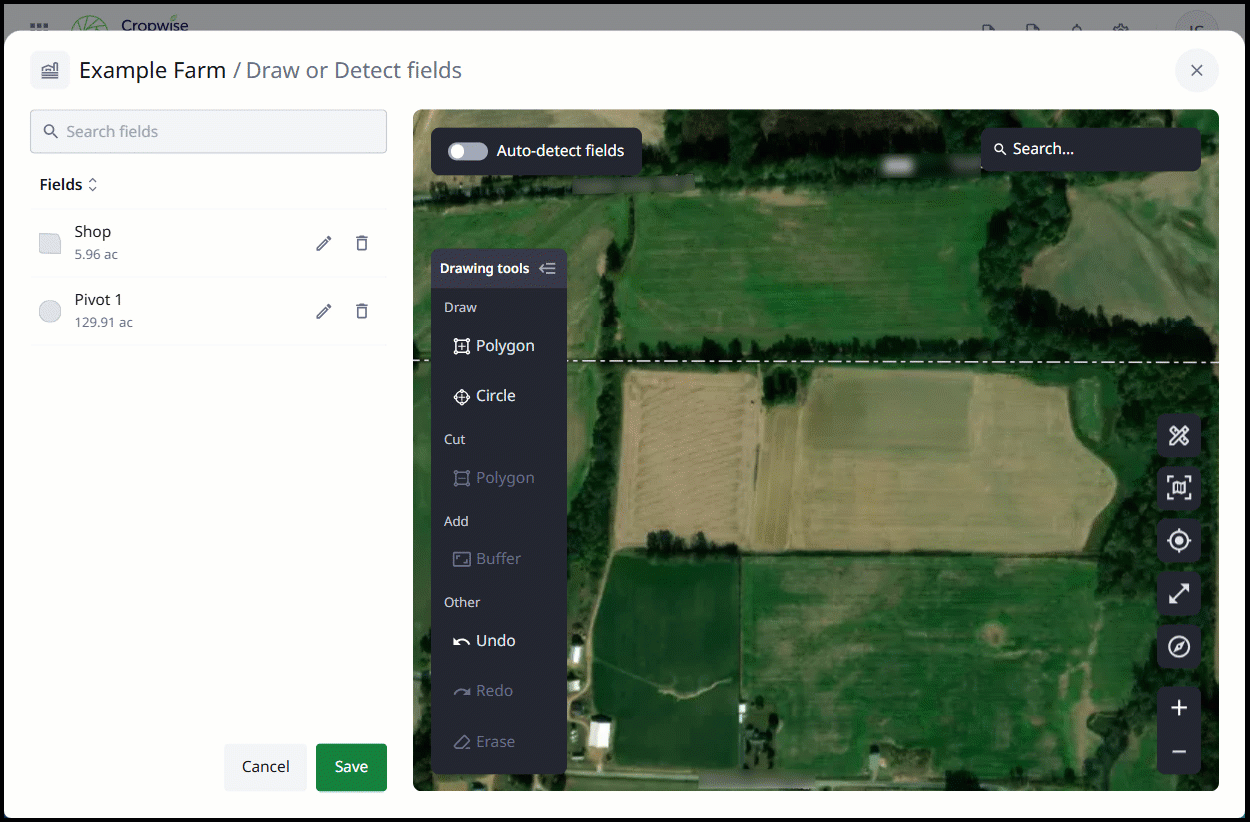

To draw a new field boundary, start by making sure that the desired Drawing tool, Polygon or Circle, is activated blue.

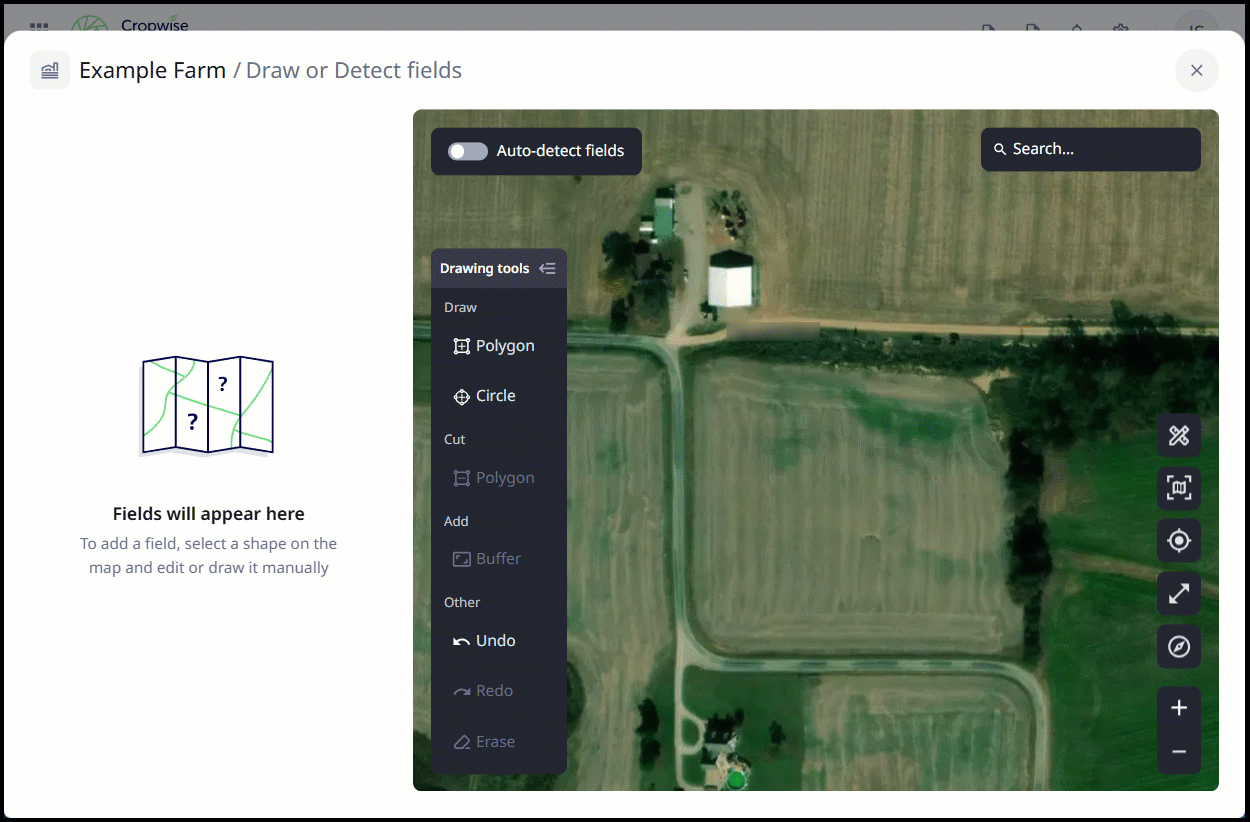

To draw a Polygon, click along the border of the field to identify boundary points. Select the first boundary point, or double-click, to close the shape. Adjust the Field name as needed and then select the Green Checkmark. Repeat this process for any additional fields. Once all fields are added, select Save.

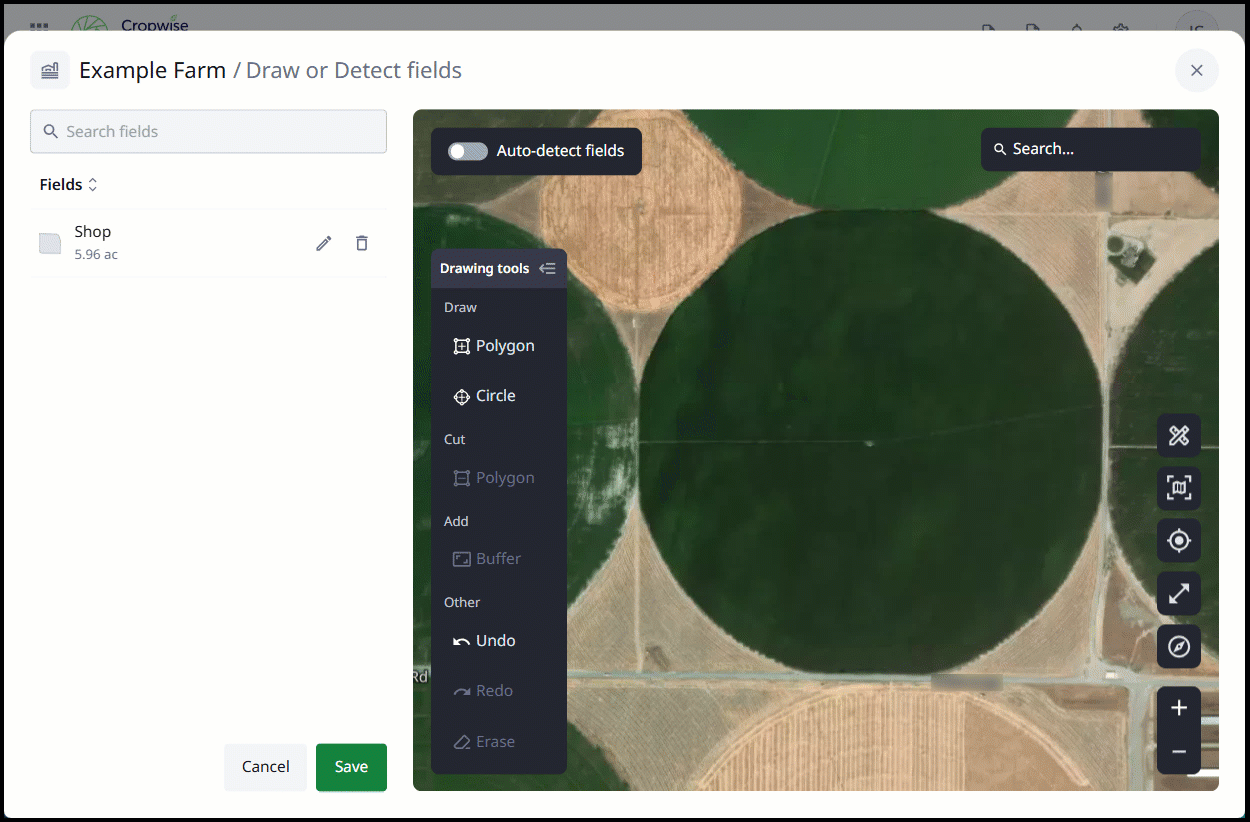

To draw a Circle, click the center point of the field and drag the circle to the desired size. Adjust the Field name as needed and then select the Green Checkmark. Repeat this process for any additional fields. Once all fields are added, select Save.
Field Detection
To use Field Detection, activate Auto-detect fields. Select a boundary or boundaries. Adjust the Field name as needed and then select the Green Checkmark. Repeat this process for any additional fields. Once all fields are added, select Save.
Completed New Farm

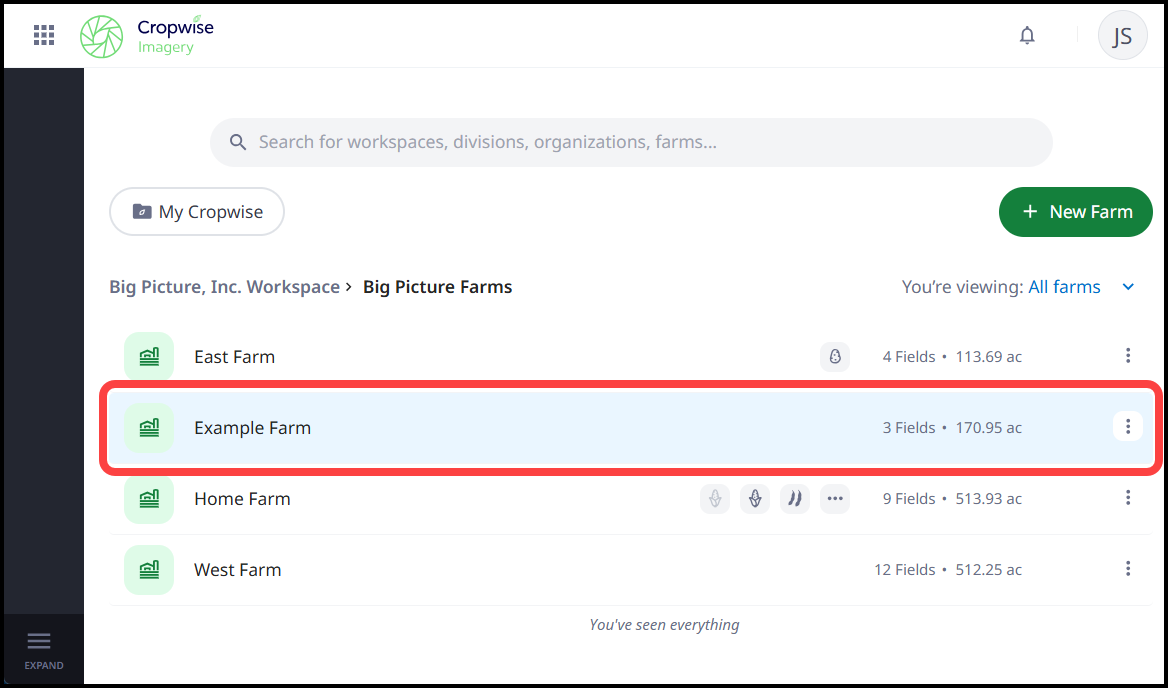

After completing the farm and field creation process, the newly created farm will then be available within Cropwise Imagery. The field imagery will begin processing, with the most recent images becoming available within approximately 30 minutes.
Click here to learn about how to begin viewing images within Cropwise Imagery.
If you have any questions regarding this content, please reach out to us with the contact information provided below.
